Target system for immediate evaluation of precise positioning of fixation elements in 3D-printed models for surgical training and object positioning


Profile Type
Technology offer
POD Reference
Term of Validity
10 January 2024 - 9 January 2025
Company's Country
Type of partnership
Commercial agreement with technical assistance
Targeted Countries
All countries
Contact the EEN partner nearest to you for more information.
Find my local partner

General information

Short Summary
A German university offers a new method to determine object positioning in surgical training or other applications. Advantages of the 3D printed models include time and resource efficiency. A prototype is available. Partners from medical industry are sought for licensing agreements.
Full Description
Evaluating the exact positioning of a guide wire in a 3D-printed training model, e.g. placement of a Kirschner wire (K-wire) in reverse shoulder arthroplasty (RSA), is often very complicated and requires complex methods such as CT imaging. These methods are time-consuming and expensive.

In order to improve the processes, inventors of a German university developed a 3D-printable three-dimensional target system for training purposes, that enables a quick and resource-saving evaluation of the exact positioning in 3D-printed models.

With their invention, the university can offer a method of providing modified model data of an object.

This includes:

• obtaining model data of the object
• positioning at least one processing line through the object, wherein the processing line represents a trajectory of a tool to be introduced into the object
• positioning a first target disk and a second target disk, spaced apart form one another, in the object, along the processing line
• defining an exchange volume comprising the first target disk, the second target disk, a portion of a surface of the object surrounding the intersection of the processing line with the surface of the object, wherein the exchange volume is configured for attachment to the object
• and obtaining the modified model data for the manufacture of a modified object, wherein the modified model data comprises model data for the exchange volume and model data for the remaining part of the object.

It is possible to adapt the application in numerous medical fields but also other areas are conceivable.

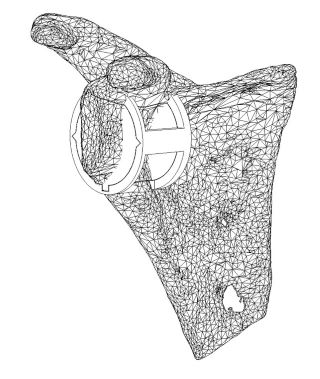

A prototype is available. The figure below shows a modified object including a main body and an exchange volume configured for attachment to the main body, wherein the exchange volume comprises a first target disk and a second target disk, spaced apart from one another.

Licensees from medtech industry are sought.
Advantages and Innovations
The univerity provides a time and resource-saving method that can be used in the training of surgeons or by companies to demonstrate the usability of their own navigation systems and new surgical methods including new instruments..
Stage of Development
Available for demonstration
Sustainable Development Goals
Goal 3: Good Health and Well-being

Partner Sought

Expected Role of a Partner
The university offers license agreements to medtech companies who develop navigation systems and/or new surgical methods including new instruments. The partner will make use of the invention for training and/or demonstration purposes.
Type and Size of Partner
SME 50 - 249SME 11-49Big company
Type of partnership
Commercial agreement with technical assistance
